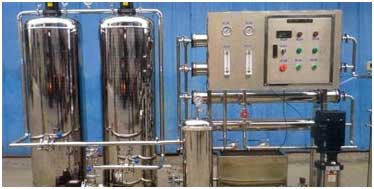

Mineral Water Plant
Mineral Water Purification system comprising of
Mineral Water PlantRaw Water feed Pump
Chlorine Dosing system
Multi Media Filtration for Coarse filtration
Activated Carbon Filtration
Water Softening / Anti Scalent Treatment Process
Reverse Osmosis Or Nano / Ultra Filtration
Purified Water Storage in Stainless Steel tank
Transfer Pump in stainless steel
Micron Cartridge Filtration (0.2 Micron)
UV Sterilization
Ozone Disinfection
Water Purification Process Description
Raw water is chlorinated or Ozonated to oxidize the organic impurities (kill bacteria and virus). This water is passed through Multi Media Filter with the help of Feed pump of suitable capacity to remove suspended impurities followed by Activated Carbon Filter to remove excess chlorine (de-chlorination), odour, colour and turbidity due to colloidal suspended impurities and organic impurities.

De chlorinated water is then dosed with Anti Scalent Solution to avoid scale formation on the membrane or passed through Softener to remove hardness. Softened water is further passed through 10-micron cartridge filter to remove micron particles to avoid clogging of the RO membrane and to improve the silt density index. Water further passed though RO Unit which is complete with High Pressure Pump, Membranes with Pressure tubes, Electrical control panel and wet panel, piping with valves and all the required accessories viz., pressure switch, solenoid valve etc. Reverse Osmosis unit will reduce the dissolved Salts up to 95% of the In feed TDS. Treated water from RO unit will be stored into SS tank.

This treated water is then passed through 0.2 micron cartridge filter before it is taken for the filling. Ozonator unit producing ozone gas is installed in series at the outlet of UV System to provide residual effect of ozone to the water.
Water Testing Facility
Purified Water is tested using IN HOUSE Water Testing laboratory Where Chemical and Micro Biologically Water is tested for Chemical and Micro Biological parameters. For this, a complete full fledge Water Testing CHEMICAL and MICRO BIOLOGICAL Lab is required. However, water is also tested for Pesticide and Radio-nuclear parameters in outside Bureau of Indian standards approved laboratory.
